Reliable MPI Accessories for Precision, Compliance, and Quality from CGM
At Labquip NDT, we provide a comprehensive range of Magnetic Particle Inspection (MPI) accessories from CGM, ensuring precision and compliance with industry standards. These tools are designed to enhance inspection accuracy and meet the stringent requirements of sectors like aerospace, automotive, and manufacturing. Every product in our selection is compliant with various industry standards, ensuring reliability and top performance.

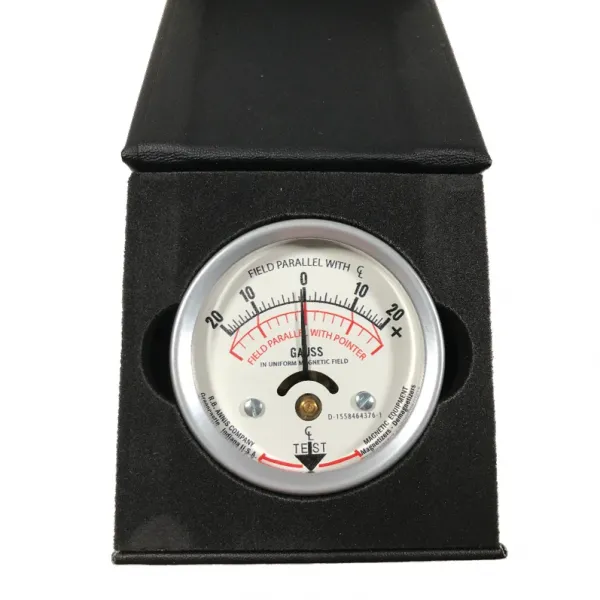

Gaussmeter
A calibrated, portable tool to measure residual magnetism and polarity for effective demagnetisation.
Key Features:
- Portable design with a durable leather sheath.
- Multiple scale ranges: ±5 to ±50 Gauss.
- Ensures accurate magnetisation/demagnetisation levels.

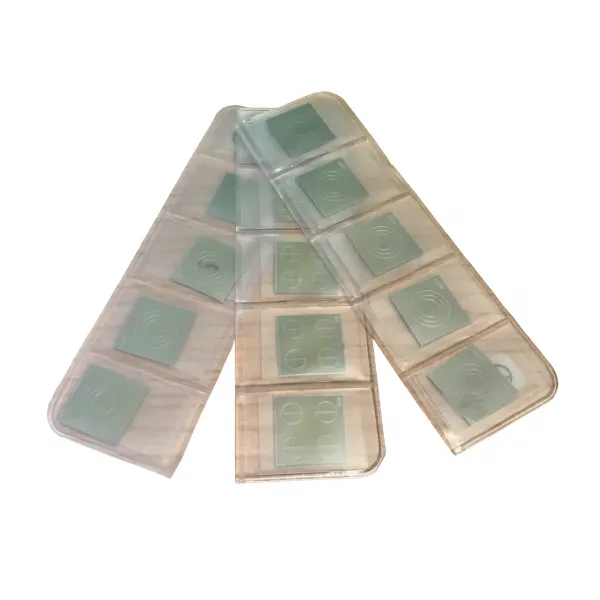

Shims Type / QQIs
Thin steel strips with engraved patterns for verifying magnetic field direction and strength during MPI.
Key Features:
- Photoengraved patterns for precise field verification.
- Reusable and compatible with continuous magnetisation methods.
Flexible Laminated Strips (Type II)
Visual indicators for magnetic field strength and consistency during MPI.
Key Features:
- Brass and silver options for specific use cases.
- Provides quick feedback on field strength.
- Supplied in packs of five strips.
Bar for MT Equipment Testing
A sample bar for simulating subsurface discontinuities to test MT system performance.
Key Features:
- Series of holes at varying depths and angles.
- Ensures proper system functionality for MT inspection.

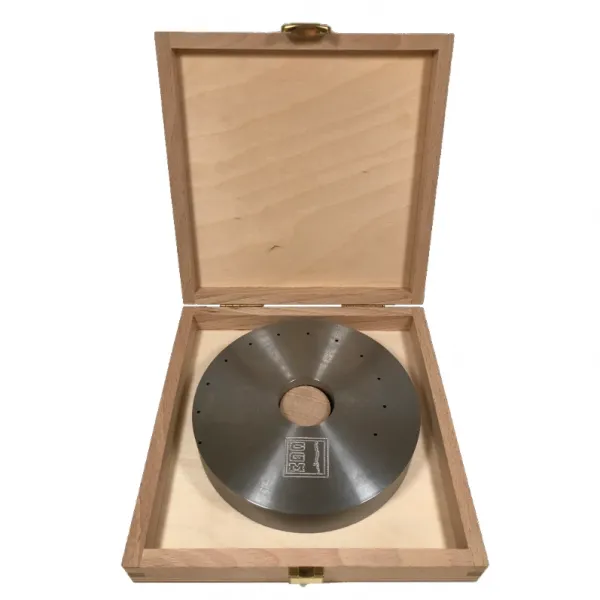

Tool Steel Ring
Rings with pre-drilled holes for verifying magnetic field penetration and system performance.
Key Features:
- Simulates surface discontinuities with varying depths.
- Supplied with a certificate of conformity.
Berthold Test
Tool for assessing magnetising efficiency in MPI systems.
Key Features:
- Adjustable central piece with clear 0° and 90° indications.
- Ensures accurate magnetisation.
Octagonal Plate
Measures the direction of the magnetic field during MPI procedures.
Key Features:
- Copper-coated octagonal steel sheets.
- Reveals indications perpendicular to flux lines.
Sedimentation Glass Tube
Used to monitor magnetic particle concentration and contamination levels in MPI baths.
Key Features:
- Pear-shaped centrifuge tube for sedimentation analysis.
- Supports both fluorescent and daylight particle baths.

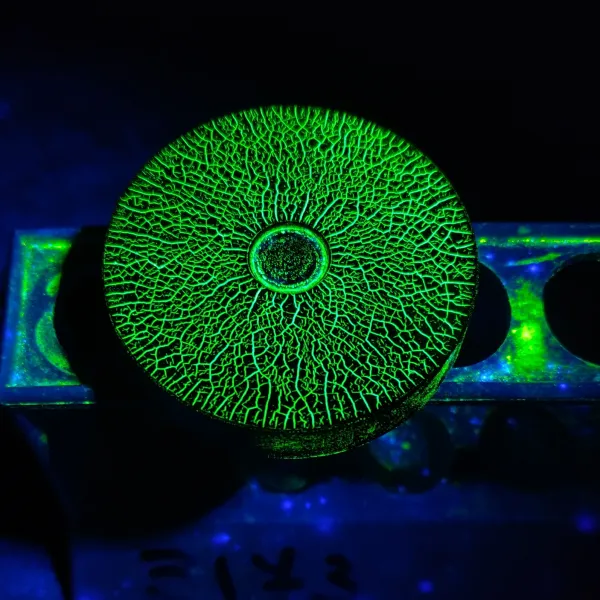

MPI Reference Block Type I / MTU Test Block
Test block featuring cracks for evaluating magnetic ink performance.
Key Features:
- Cracks ranging from 0.1 to 1 µm.
- Compatible with fluorescent and visible magnetic particles.

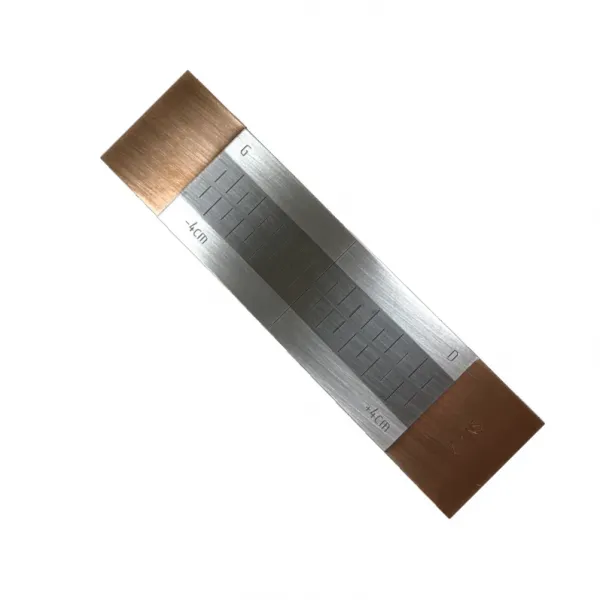

MPI Reference Block Type II
Calibrated tool for sensitivity assessment of magnetic inks.
Key Features:
- Scale ranging from +100 A/m to -100 A/m.
- Measures magnetic field strength and ink sensitivity.

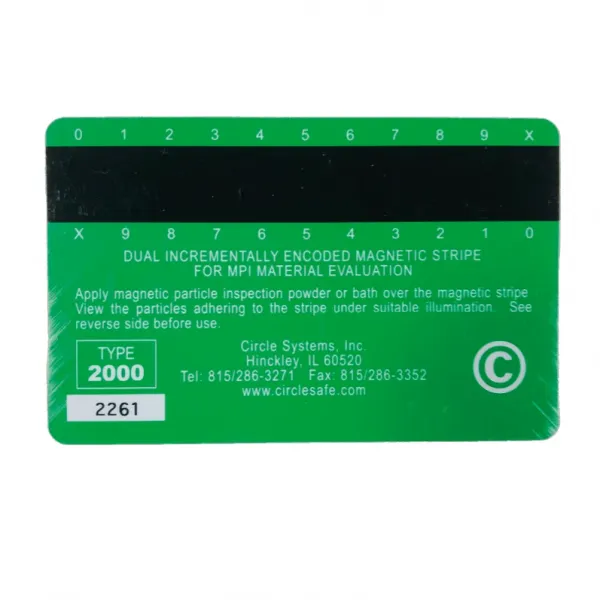

Magnetic Strip Card – Type 2000
Evaluates the effectiveness of wet fluorescent magnetic particle materials.
Key Features:
- Standardised magnetic patterns for reliable testing.
- Provides instant visual indications for material effectiveness.
